PORTABLE 3D MAPPING SYSTEMS



Designed for indoor and outdoors, complexes sites, underground mines, multi-floor buildings, forests, urban areas, stockpiles volumes.
Perfect for geospatial and digital twin applications.







Modelli





From field use to digital output







Unique Features





VERSATILE & COMPACT DESIGN


VERSATILE & COMPACT DESIGN

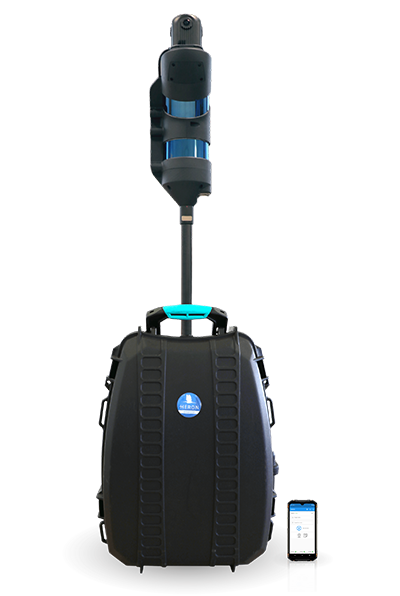

HERON's capture head can be docked to telescopic poles or to the rugged backpack or mounted on vehicles (cars, quads, boats, etc.). The rugged backpack can be used both as a mapping support and a transport case. HERON's compactness and robustness allow its use in demanding and aggressive environments.



LOOP CLOSURE NOT MANDATORY


LOOP CLOSURE NOT MANDATORY


Thanks to patented and innovative SLAM algorithms, HERON makes the mapping trajectory very flexible. Surveyors are not forced to start and finish their mapping at the same point!

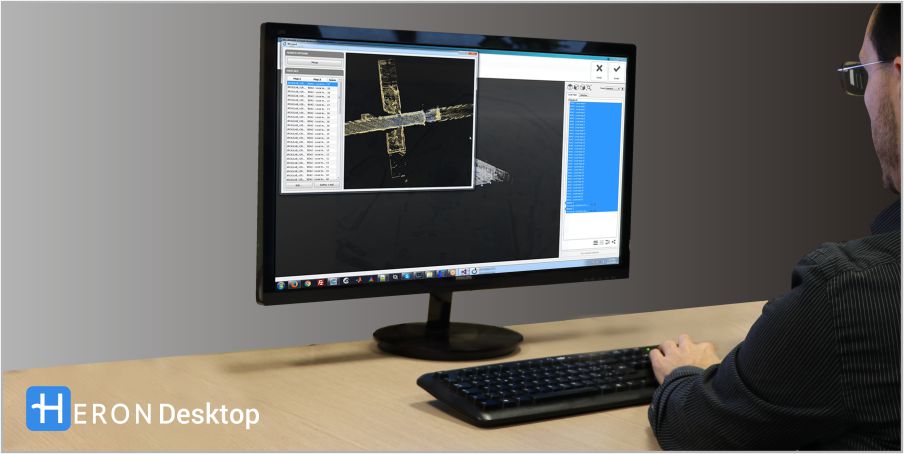

PARAMETERS' FULL CONTROL


PARAMETERS' FULL CONTROL


HERON users can easily access the post-processing procedure thanks to a fully automatic workflow. HERON also provides a unique “advanced mode” which allows setting every single parameter of the SLAM processing interface.



CONSTRAINTS APPROACH

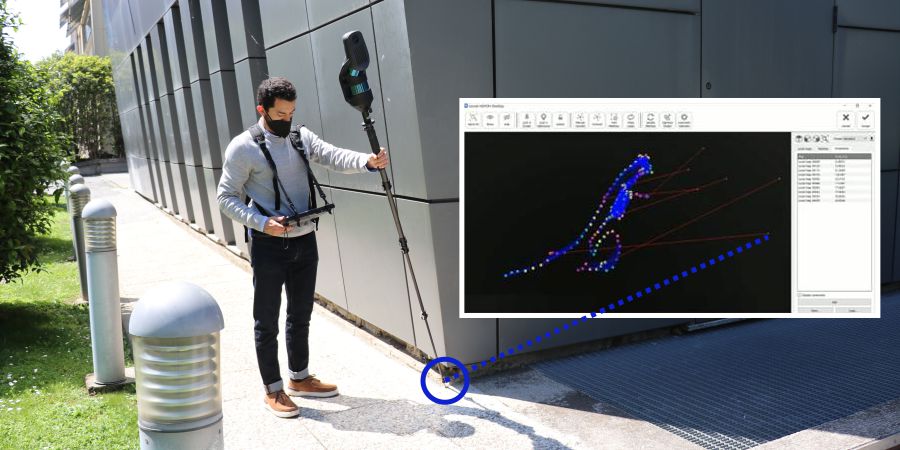

CONSTRAINTS APPROACH


HERON supports the use of control points as constraints. They can be collected on the field with HERON or recognized in post-processing onto the point cloud directly. HERON can also use georeferenced control scans as constraints. The use of constraints keeps drifts and accuracy under the full control of the surveyor.



HERON Blueprint


GOBLUEPRINT


A free tool to easily share x-ray/depth maps of HERON models with final clients. Not expert users too can then visualize the surveyed area in a simple 2D interface and take measures in a very intuitive way. GoBlueprint runs on any Windows-based computer or tablet.



DATA INTEGRATION


DATA INTEGRATION


The Reconstructor software included with HERON is the solution to combine point cloud models from various lidar sensors and in different formats. Static scans, LAS files, point clouds from UAV, and BIM models can be managed in the same software. Moreover, HERON can be the easy and fast way to connect point cloud models located indoors and outdoors of the mapped site.



DIRECT EXPORT

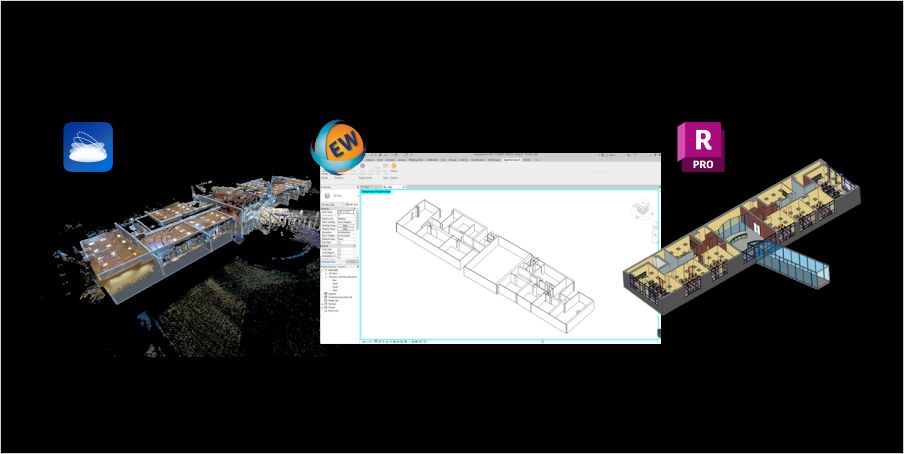

DIRECT EXPORT TO RECAP


HERON models can be easily shared and exported in the most common formats, such as .rcp for Autodesk® ReCap or E57. This means a brilliant workflow in data processing and professional results guarantee. Point cloud models from a HERON mapping project can be easily imported into third-party software for “scan-to-BIM” and progress monitoring applications, or any other post-processing analysis.



DIGITAL TWIN


DIGITAL TWIN


HERON 3D models can be navigated by immersive tours or uploaded on cloud-sharing platforms for Digital Twin projects. HERON provides a direct connection with Cintoo Cloud, 3DUserNetVISION, 3DMapping Cloud, and Scene WebShare. HERON customers can benefit from dedicated offers.













Applications Fields

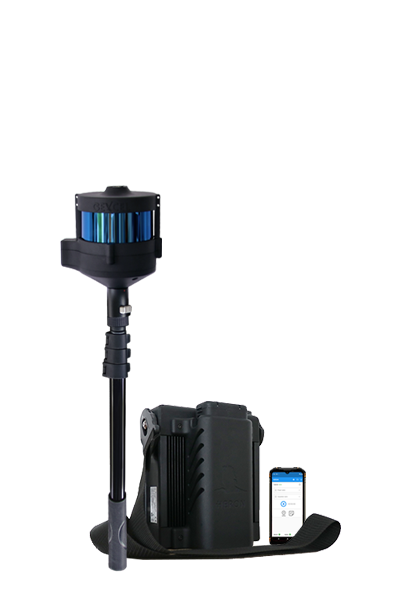

HERON LITE - Fast mapping
FAST MAPPING

Quickly survey indoor sites in a very short time and get fast results.

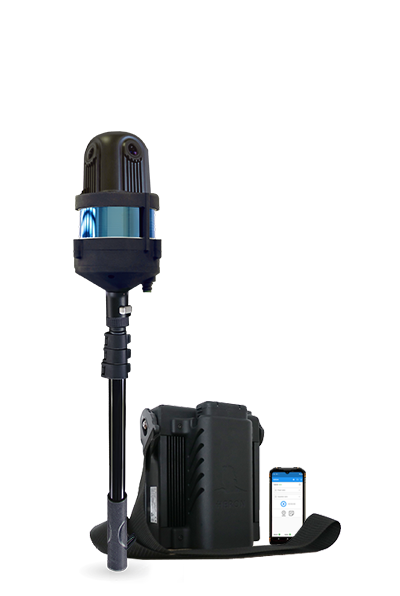

HERON LITE Color - Indoor mapping
INDOOR MAPPING

Acquire indoor sites and get 2D-3D documentation for facility management and more.

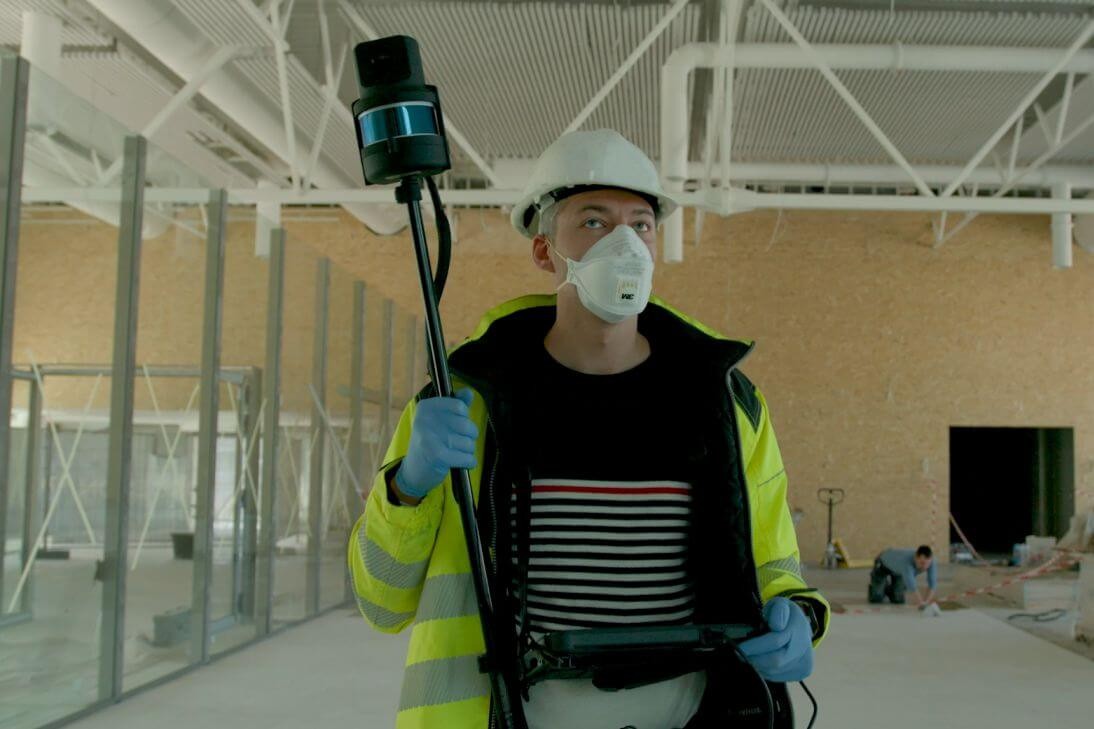

HERON LITE Color - 3D Mapping
INDUSTRIAL SITES

Manage the structural expansions and the handling of large materials, displaying the status of your production area with HERON®.

HERON MS Twin - Digital Twin

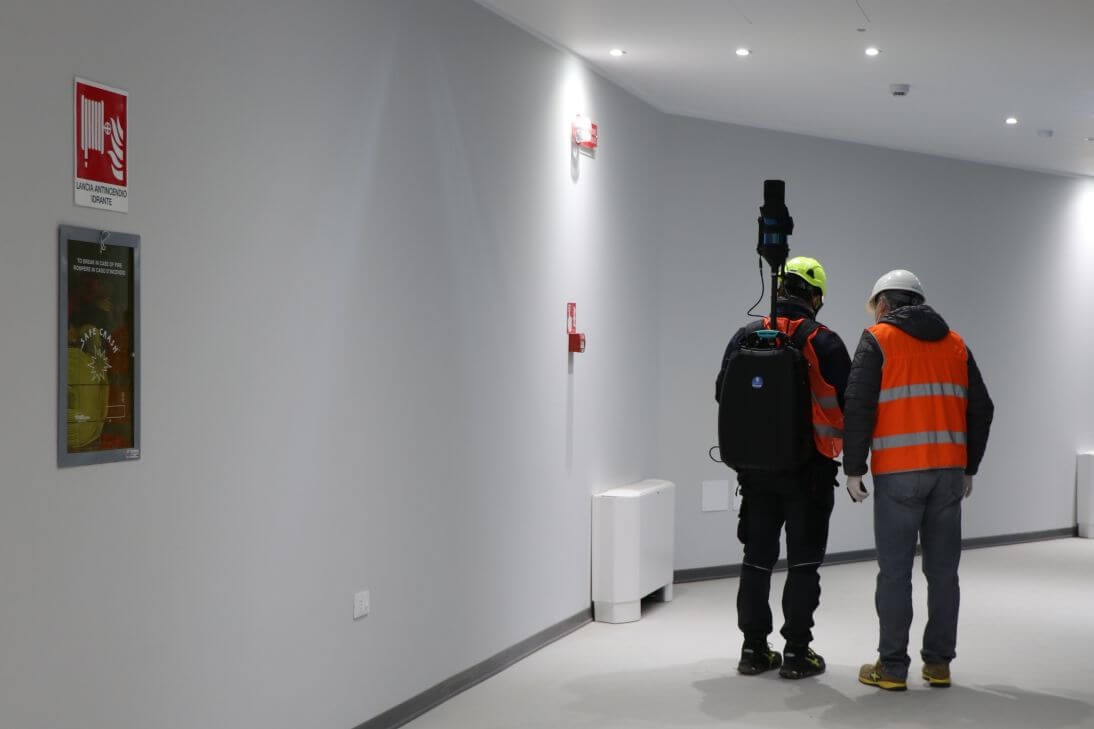

FACILITY MANAGMENT

Spaces and objects documentation to catalogue and manage an intelligent 3D building model.

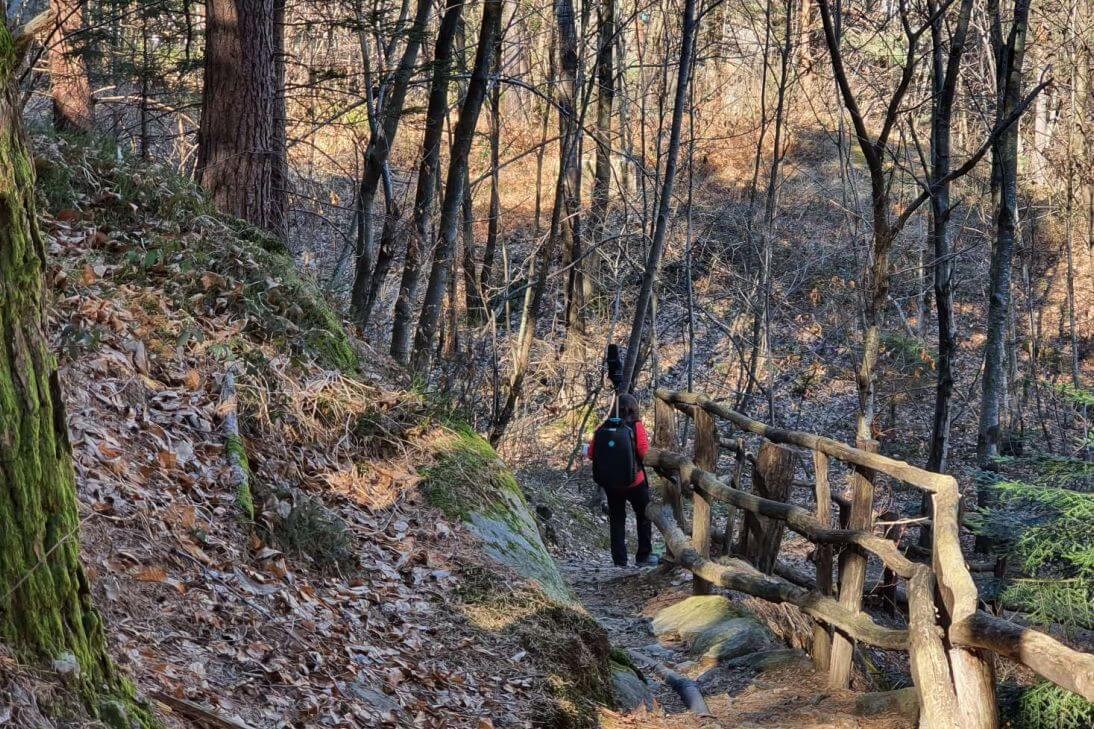

HERON MS Twin - forestry mapping
FORESTRY & FOOTPATHS

Rapidly survey forestry or fastly map mountain footpaths.

HERON MS Twin - 3D Mapping
HUGE & COMPLEX AREAS

Quickly get a complete model of a big or complex site to smartly start the pre-project work.

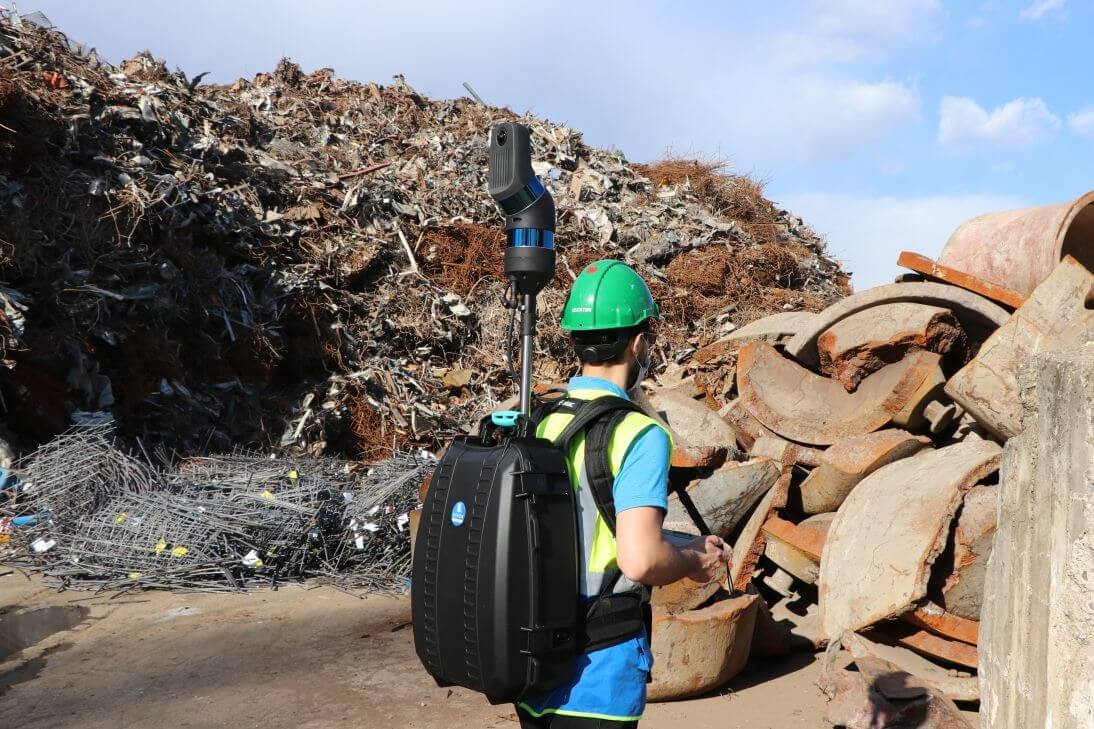

Gexcel HERON - Stockpile volume computation
STOCKPILES

Rapidly map big stockpiles for volume calculation and fast check of volume changes.

Gexcel HERON - Museum virtual reality

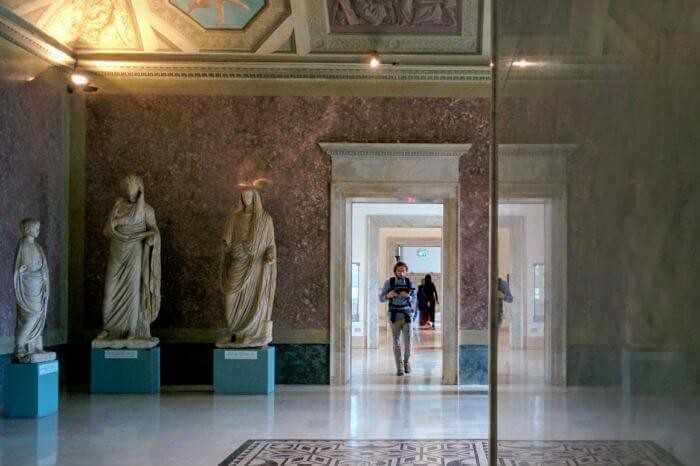

MUSEUMS

Generate a 3D model with photographic information, to create an interactive museum resource.

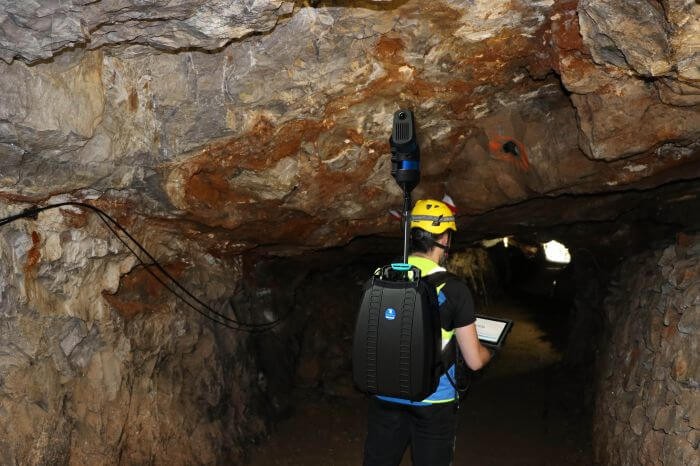

Gexcel HERON - Underground mining mapping
UNDERGROUND MINES

Access dark site without GNSS signal and get a 3D model in a very comfortable way.

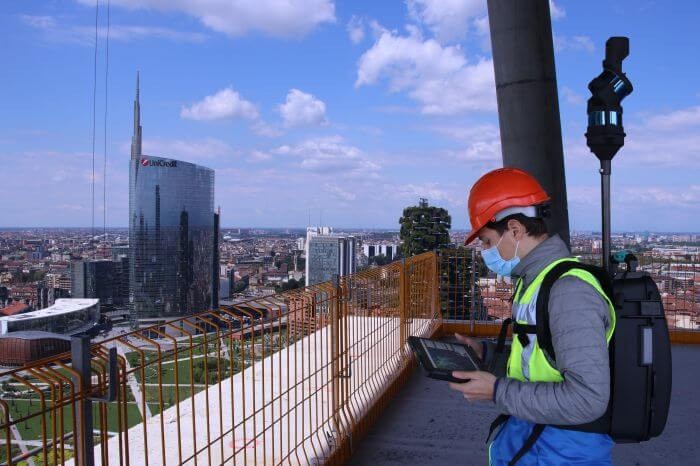

HERON MS Twin - Construction mapping
CONSTRUCTION SITES

Quickly check the progress of a construction site by comparing the BIM model with the HERON® one.

Gexcel HERON - Cultural heritage
CULTURAL HERITAGE

Analyze the monuments deterioration of over time by comparing the real-time acquisition with the previous 3D scans.

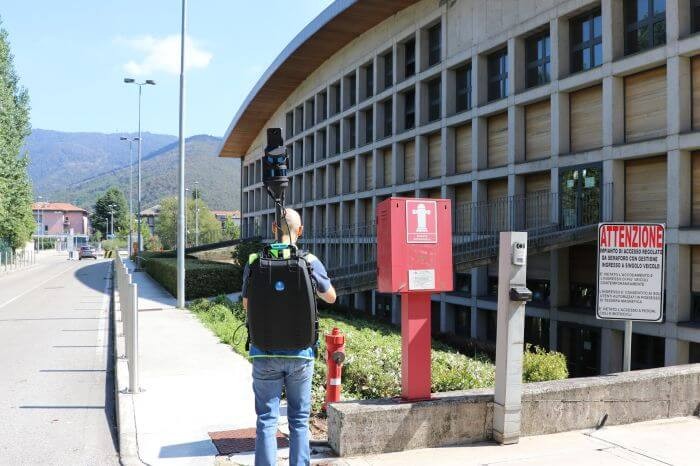

HERON LITE - Cadastral
CADASTRAL

Generate accurate and updated 2D maps of your city or get a 3D panoramic tour indoor and outdoor.
