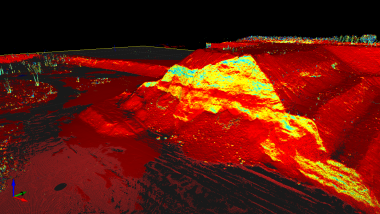

INCLINATION FROM PLANE
Color classification of a surface according to the inclination for a user defined plane. Useful for slopes and geological analysis.
Create a topographic mesh from a nadiral view given a point clouds and inside a close polyline. A specific interpolation method applied to fill holes.

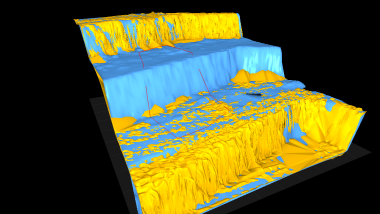

CUT & FILL VOLUME
Calculate the cut and fill volumes given two meshes and a reference plane.
CYLINDER VIRTUAL SCAN
Extract a cylindrical virtual scan of the 3D scene and its models along a given fly-through trajectory.

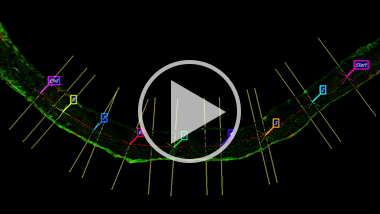

Extraction of sequential cross-sections from point clouds or mesh models along a user-defined tunnel axis. Extraction of linear, areas, and volume measures. Tunnel cross-sections exportable in Cad as polylines, point clouds and scaled orthographic views.

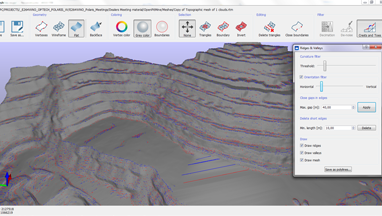

CRESTS & TOES DETECTION
Automatic extraction of open pit crests & toes from a topographic mesh.

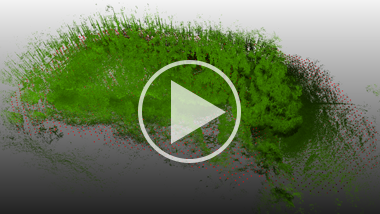

Create digital elevation models starting from a complex 3D point cloud thanks to a list or a grid of points automatically extracted by selecting the desired elevation.

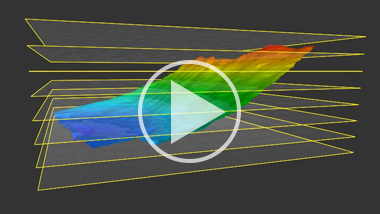

Straight workflow for isolines and contours extraction from an open-pit mine model, a stockpile or a DEM.
